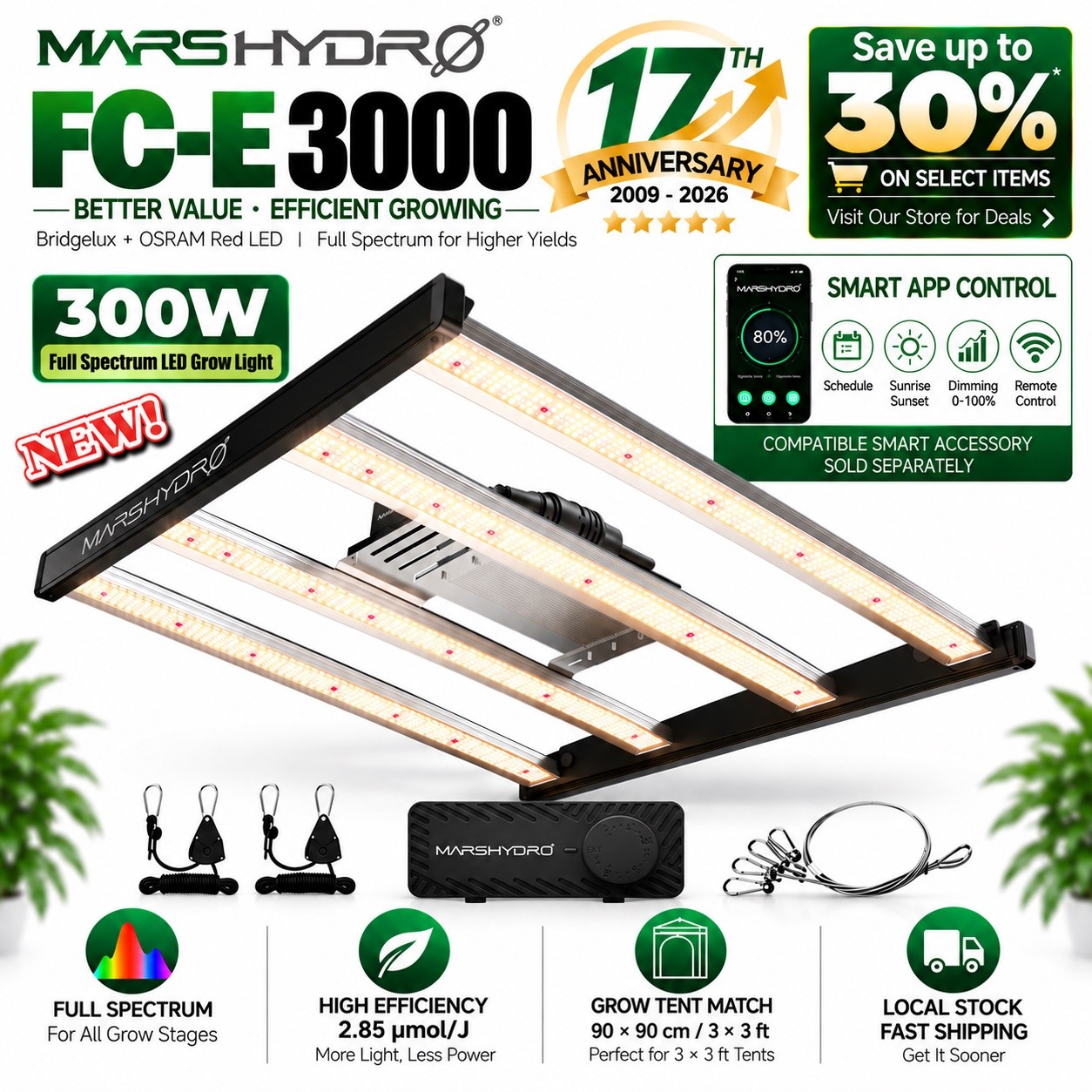

Document Features of Smart FC-E Commercial Grow Light Bar

FC-E Series – OSRAM Red Light for Maximum Flowering Power
Premium Bridgelux diodes (USA) meet specially tuned OSRAM red lights (Germany) – a combination unmatched in this price class. The bar-style design delivers perfect light distribution, better heat dissipation, and longer lifespan than conventional panels. The ideal choice for beginners who want high yields on a small budget.

Premium features for pros and hobbyists alike
IP65-rated, precisely controllable, with excellent thermal management. The OSRAM red-light diodes deliver the exact spectrum that accelerates the flowering phase – for larger buds, more resin, and visibly better harvests.

50 % less energy cost
The externally mountable driver and aluminum heatsink with fine cooling fins drastically reduce heat buildup. Compared to HID lamps, you save up to 50 % on electricity – while extending the service life of both OSRAM and Bridgelux chips.

Full spectrum + boosted red light
Designed for soil and grow tents. The broad full spectrum with targeted red-light enhancement promotes both vegetative growth and flowering – for maximum yields from germination to harvest.

5-year warranty – grow with confidence.

Specifications of Mars FC-E1500 Led Grow Light

• Model: Mars Hydro FC-E1500 150Watt LED (NEW!)
• Noise Level: 0 DB
• Chip Brand:Bridgelux+OSRAM red
• Spectrum:660-665nm 2800-3000K 4800-5000K
• Actual Wattage(+-5%): 150W±5% 100-277V
• Amp Draw:1.274A@AC120V 0.642A@AC240V 0.564A@AC277V
• Core Coverage: 2ft × 2ft=0.7m × 0.7m
• PAR Value:420μmol/S
• Lumen Output: 24844Lm±5%@AC120V 24844Lm±5%@AC240V
• Replaces HPS/HID/MH: 300 watt
• Product Size:6.4\"L x 5.7\"W x 2.8\"H
• Product Weight: 6.17LB/2.8KG
• Input Voltage: 100-277V
• Frequency Range: 50~60Hz
• Life Rating: 50000-100000hrs
• PPE: 2.8μmol/j
• Recommend light&tent combo:FC-E1500 led+70x70x160 tent

Specifications of Mars FC-E3000 Led Grow Light

• Model: Mars Hydro Smart FC-E3000 300Watt LED
• Noise Level: 0 DB
• Chip Brand:Bridgelux+OSRAM red
• Spectrum:660-665nm 2800-3000K 4800-5000K
• Actual Wattage(+-5%): 300W±5% 100-277V
• Amp
• Core Coverage: 3ft × 3ft=1m × 1m
• PAR Value:815μmols
• Lumen Output:
• Replaces HPS/HID/MH: 400 watt
• Product Size:614*601*79MM
• Product Weight: 5.3KG
• Input Voltage: 100-277V
• Frequency Range: 50~60Hz
• Life Rating: 50000-100000hrs
• PPE: 2.8μmol/j
• Recommend light&tent combo:FC E3000 led+3\'x3\'x6\' tent

Specifications of Mars Smart FC-E4800 Led Grow Light

• Model: Mars Hydro FC-E4800 480W LED
• Noise Level: 0 DB
• Chip Brand:Bridgelux+OSRAM red
• Spectrum: 660-665nm 2800-3000K 4800-5000K
• Actual Wattage(+-5%):480W±5% 100-277V
• Amp Draw: 3.99A@AC120V，1.99A@AC240V
• Core Coverage: 4ft × 4ft=1.2m × 1.2m
• PAR Value:1327μmols
• Lumen Output:
• Replaces HPS/HID/MH: 600 watt
• Product Size:864*852*79MM
• Product Weight: 9.1KG
• Input Voltage: 100V-277V(AC)
• Frequency Range: 50~60Hz
• Life Rating: 50000-100000hrs
• PPE: 2.8μmol/j
• Recommend light&tent combo:FC E4800 led+4\'x4\'x6.5\' tent

Specifications of Mars FC-E6500 Led Grow Light

• Model: Mars Hydro Smart FC-E6500 730W LED
• Noise Level: 0 DB
• Chip Brand: BridgeluxBridgelux+OSRAM red
• Spectrum: 660-665nm,2800-3000K,4800-5000K
• Actual Wattage(+-5%):730W±5% 100-277V
• Amp Draw: 5.64A@AC120V,2.78A@AC240V
• Core Coverage: 5ft × 5ft=1.5m × 1.5m
• PAR Value: 1822 μmols
• Lumen Output: 110632Lm±5%@AC120V 108702Lm±5%@AC240V
• Replaces HPS/HID/MH: 1000 watt
• Product Size:1151*1151*79MM
• Product Weight:10.8KG
• Input Voltage: 100V-277V(AC)
• Frequency Range: 50~60Hz
• Life Rating: 50000-100000hrs
• PPE: 2.8μmol/j
• Recommend light&tent combo:FC E6500 led+5\'x5\'x6.5\' tent

Specifications of Mars FC-E8000 Led Grow Light

• Model: Mars Hydro Smart FC-E8000 800W LED
• Noise Level: 0 DB
• Chip Brand: BridgeluxBridgelux+OSRAM red
• Spectrum: 660-665nm,2800-3000K,4800-5000K
• Actual Wattage(+-5%):800W±5% 100-277V
• Amp Draw: 6.619A@AC120V,3.26A@AC240V
• Core Coverage: 5ft × 5ft=1.5m × 1.5m
• PAR Value: 2079 μmols
• Lumen Output: 136760Lm±5%@AC120V 137172Lm±5%@AC240V
• Replaces HPS/HID/MH: 1000 watt
• Product Size:1161*1151*81MM
• Product Weight:12KG
• Input Voltage: 100V-277V(AC)
• Frequency Range: 50~60Hz
• Life Rating: 50000-100000hrs
• PPE: 2.8μmol/j
• Recommend light&tent combo:FC E8000 led+5\'x5\'x6.5\' tent

Specifications of Mars FC-E1000W Led Grow Light

• Model: Mars Hydro FC-E1000W LED
• Noise Level: 0 DB
• Chip Brand: BridgeluxBridgelux+OSRAM red
• Spectrum: 660-665nm,2800-3000K,4800-5000K
• Actual Wattage(+-5%):900W±5%@AC120V 1000W±5%@AC240V
• Amp Draw: 8.311A@AC120V 3.933A@AC240V 3.294A@AC277V
• Core Coverage: 4ft × 4ft=1.2m × 1.2m
• Max Coverage: 4ft × 6ft=1.2m × 1.8m
• PAR Value: 2766 μmols
• Lumen Output: 169243Lm±5%@AC120V 168955Lm±5%@AC240V 167815Lm±5%@AC277V
• Replaces HPS/HID/MH:1000 watt
• Product Size:45.1*44*3.8in
• Product Weight:12.5KG
• Input Voltage: 100V-277V(AC)
• Frequency Range: 50~60Hz
• Life Rating: 50000-100000hrs
• PPE: 2.8μmol/j
• Recommend light&tent combo:FC-E1000w led+8\'x4\'x6.5\' tent
• Recommend Ventilation Kits: 6\'\' Inline Fan Carbon Filter Combo
• Please note: the FC-E needs to purchase the iconnect smart controller separately to achieve the intelligent APP control function.

Mars Hydro Indoor Grow Tent Kit Grow Tent Size 24\" x 24\" x 55\"
2\' x 2\' x 4.5\'
60 x 60 x 140cm 27\" x 27\" x 63\"
2\' x 2\' x 5\'
70 x 70 x 160cm 48\"x24\"x70\"
4\'x2\'x6\'
120x60x180cm 39\" x 39\" x 70\"
3\' x 3\' x 6\'
100x100x180cm 48\" x 48\" x 78\"
4\' x 4\' x 6.5\'
120x120x200cm 59\"x59\"x78\"
5\'x5\'x6.5\'
150x150x200cm 96\"x48\"x80\"
8\'x4\'x6.5\'
240x120x200cm Material 1680D Fabric,
All metal 1680D Fabric,
All metal 1680D Fabric,
All metal 1680D Fabric,
All metal 1680D Fabric,
All metal 1680D Fabric,
All metal 1680D Fabric,
All metal Vent Size (Qty/Diameter) 1 x 3\",2 x 6\",1 x 8\" 2 x 3\",2 x 6\",1 x 8\" 2 x 3\'\', 2 x 6\",1 x8\'\' 2 x 3\'\', 4 x 6\",2 x8\'\' 2 x 3\'\', 4 x 6\"2 x8\'\' 2 x 3\", 2 x 8\", 4 x 10\" 4 x 3\", 2 x 8\", 4 x 10\" Micro-mesh Window(Qty* L/W) 2*7\"×12\" 3*7\" x12\" 1*7\" x 20\"; 2*5\" x 12\" 3*7\" x 15\" 3*7\" x 20\" 3*7\" x 20\" 4*7\" x 20\" Door Qty 1 front door 1 front door 1 front door 1 front door 1 front door 1 front door,
2 side doors 2 front doors,
2 back doors Net Weight 5.8 KG / 12.8 lbs 6.8 KG / 15 lbs 9 KG / 19.9 lbs 9.5 KG / 21 lbs 12.5 KG / 27.6 lbs 15 KG / 33.1 lbs 20 KG / 44 lbs Overall Capacity 40 KG / 88 lbs 50 KG / 110 lbs 50 KG / 110 lbs 50 KG / 110 lbs 70KG / 154 lbs 70KG / 154 lbs 130KG / 286 lbs Package Discreet Discreet Discreet Discreet Discreet Discreet Discreet Recommend LED TS 600 TS 600
SP 150
TS 1000
TSL 2000
SP 3000
SP 6500
TS 1000
TSW 2000
FC 3000
FC-E3000
TSW2000
FC 4800
FC-E4800
TS3000
FC 6500
FC-E6500
FC 8000
FC-E8000
FC4800X2
FC-E4800X2
FC6500X2
FC-E6500X2
Recommend Ventilation Kits 4\'\' Ventilation Kits 4\'\' Ventilation Kits 4\'\' Ventilation Kits 4\'\' Ventilation Kits 6\'\' Ventilation Kits 6\'\' Ventilation Kits 6\'\' Ventilation Kits

---
